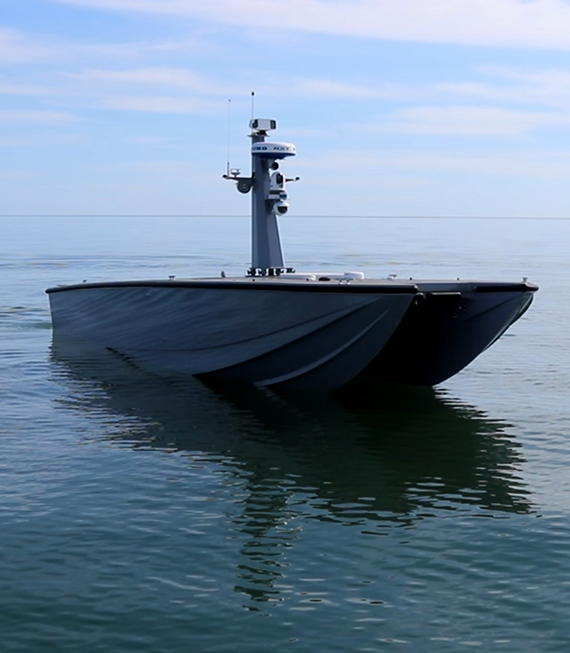

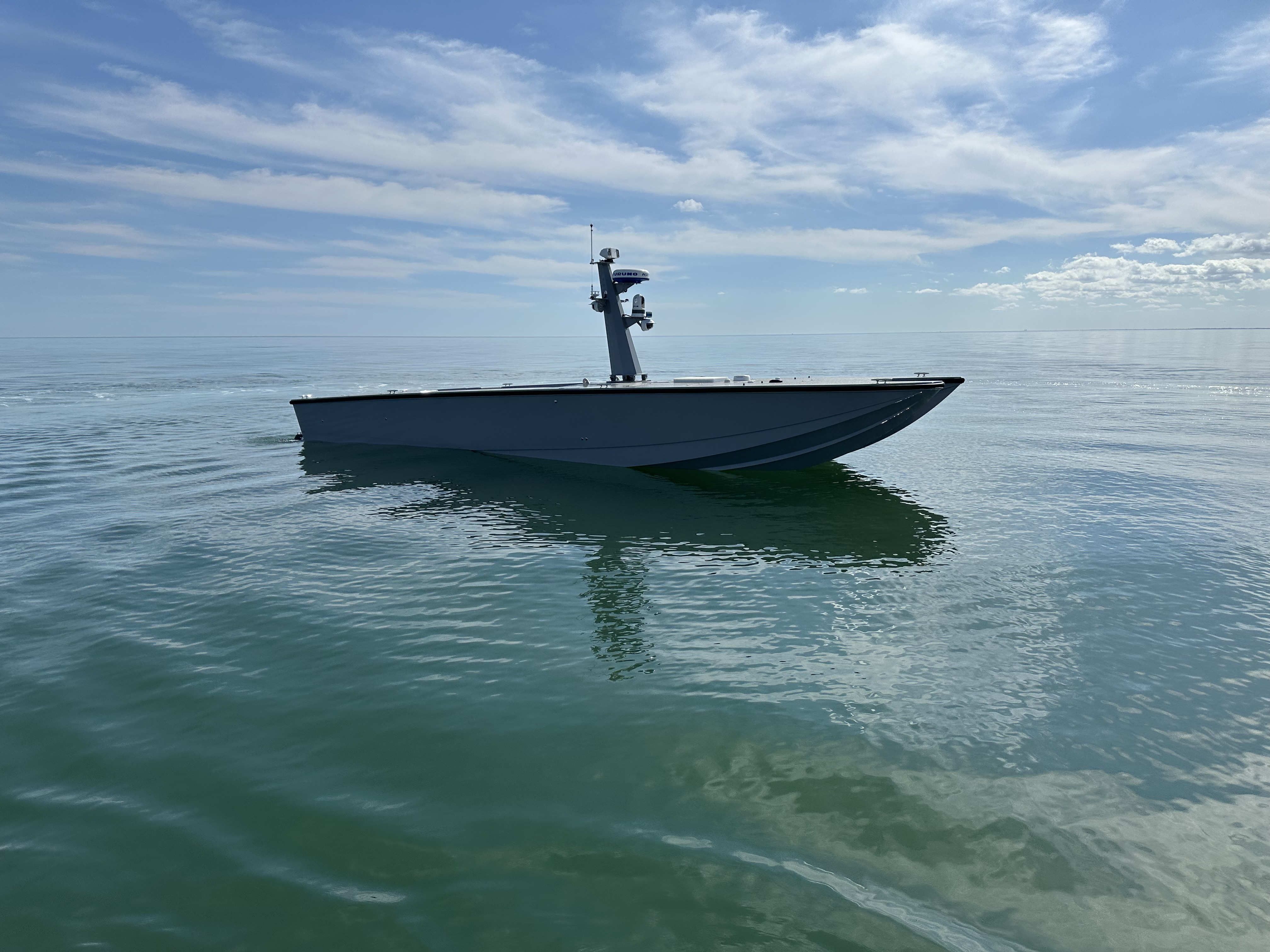

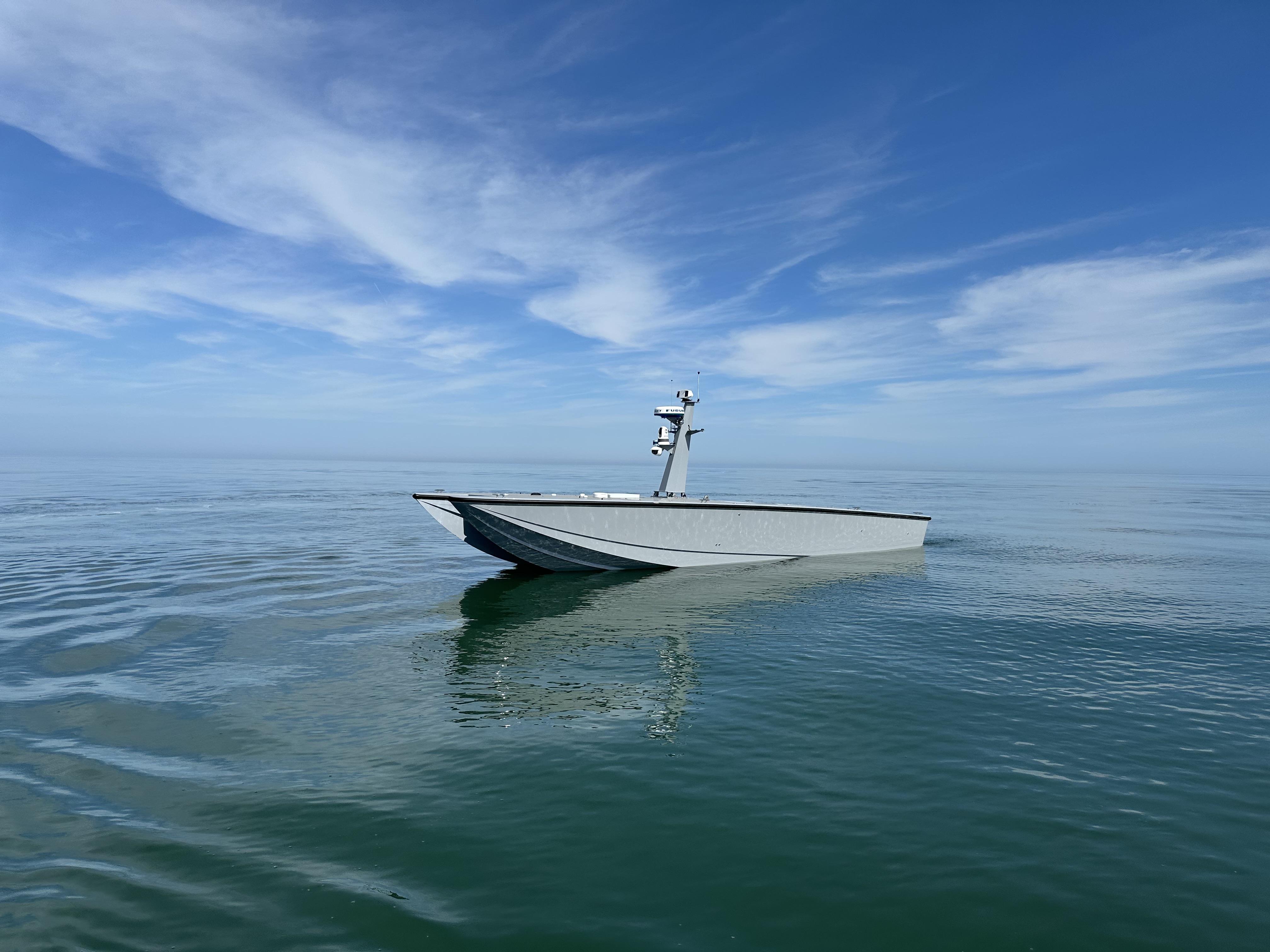

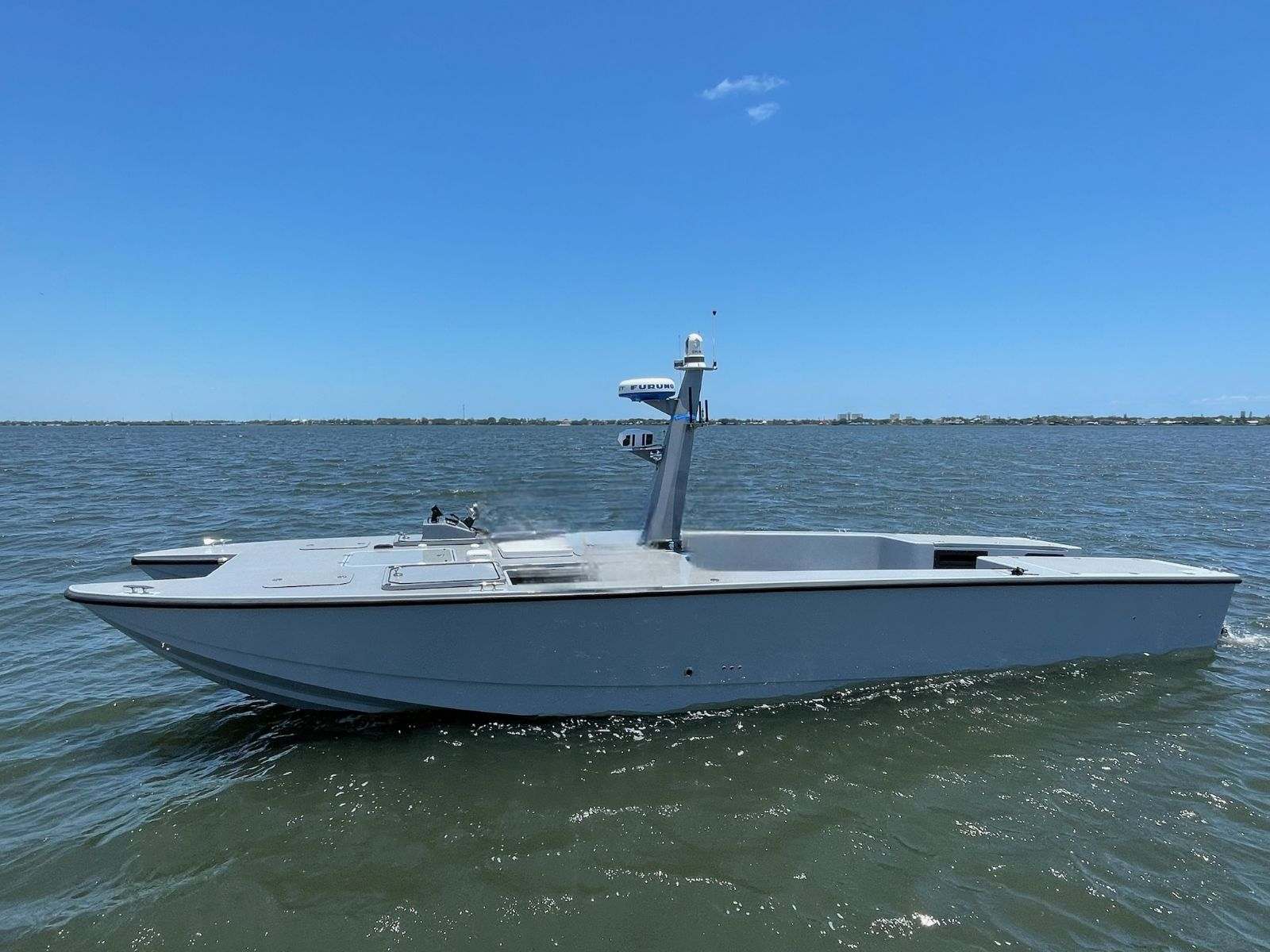

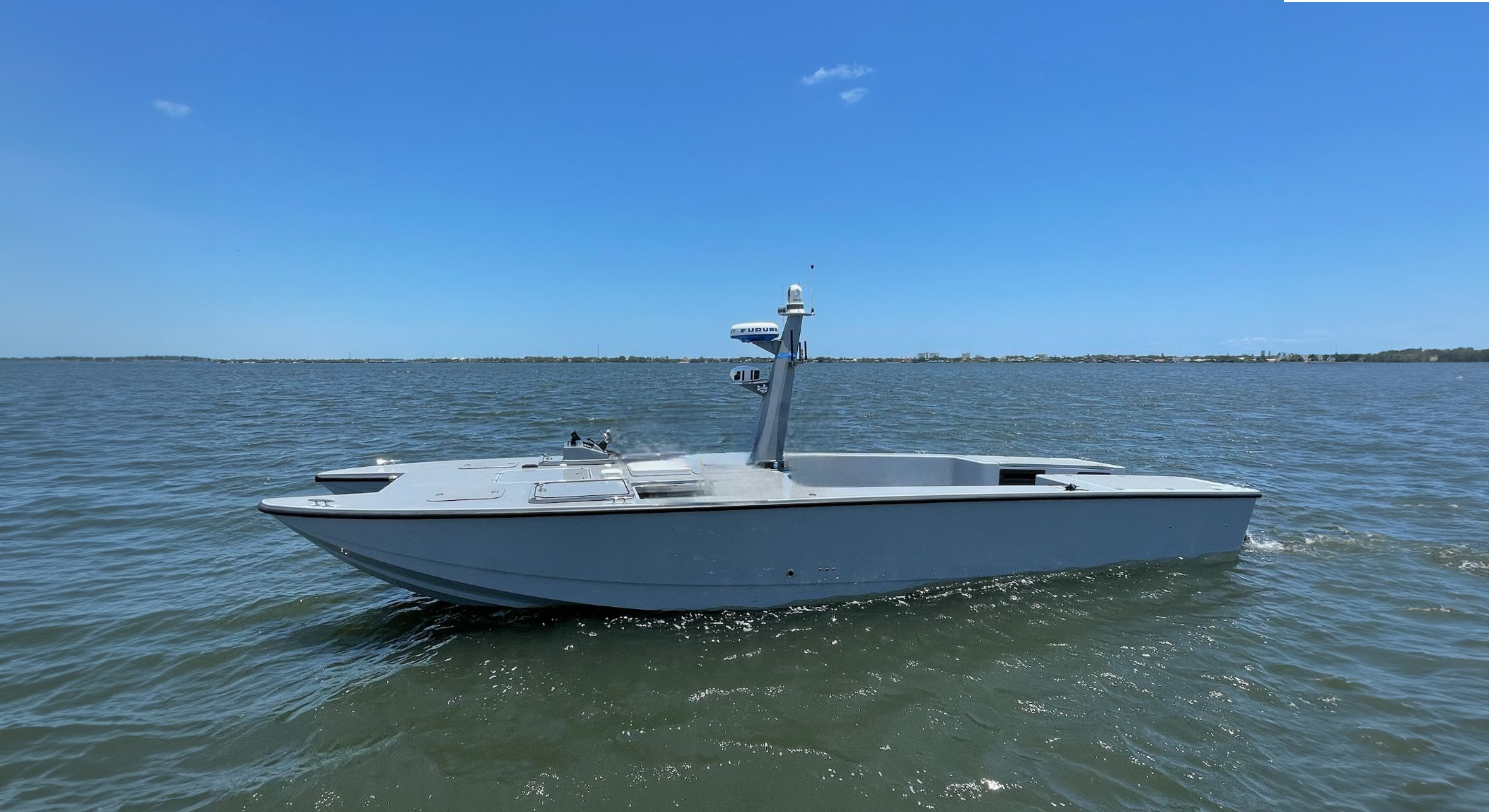

Devil Ray T38
With a length of 38 feet (11.1 m) and based on a high-performance dual sponson platform that has multiple world records for manned speed and stability, it’s a medium USV system capable of high burst speeds, sea state stability and a maximum payload capacity of 4,000 lbs. (1,814 kgs).
The T38 can be equipped with inboard/outboard powertrain options, allowing you to choose between diesel or gas engines to address your specific operational requirements. Based on those mission requirements, the combination of powertrain options and payload management can result in T38 systems with burst speeds ranging from 70 to 100+ kts.
The T38 platform performance capabilities are maximized when combined with advanced sliding autonomy control modes that range from full-operator and autonomous control to shared control where multiple operators can cooperatively share USV control and payloads.
The T38 is a highly reliable system based on redundant modules and an open and flexible architecture that allows for plug and play payload management system. Deploying the T38 can provide a serious augmentation capability to your fleet operations.
Specifications
Devil Ray T38Length
38 ft (11.1 m)
Max Payload
4,000 lbs (1,814 kgs)
Powertrain
Inboard/Outboard (Diesel or Gas)
Burst Speed
70 to 100+ kts
Missions
Defense
-
Contested Logistics
-
Search and Rescue
-
Security Monitoring
-
ISR Swarm
-
EW/SIGINT
-
Shallow and Deep Water Mine Countermeasure
-
Anti-Submarine Warfare
-
High Value Escort
Commercial
-
Asset Inspection
-
Asset protection
-
Environmental Monitoring
-
Security Monitoring
-
Bathymetry Mapping
-
Port/Harbor Security
Request Information
Get more information on the Devil Ray T38.
MARTAC’s Systems
MANTAS T8
The MANTAS T8 is an 8-foot (2.5 m) man-portable unmanned system with a payload capacity of 40 lbs (17 kgs) and burst speeds up to 25 kts in a compact form factor. It offers autonomy and effectiveness for small littoral missions.
MANTAS T12
The MANTAS T12 is a 12-foot (3.6 m) all-electric system that expands maritime operations by hosting up to 140 lb (64 kg) payloads and burst speeds to 30+ kts.

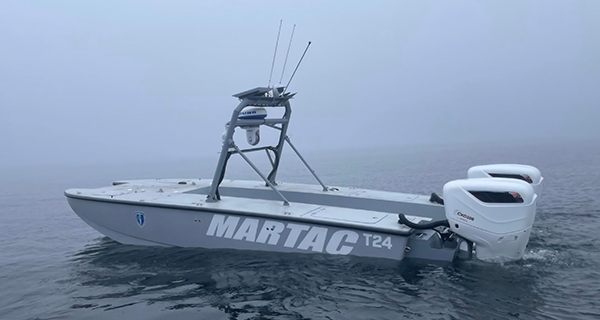

Devil Ray T24
The workhorse of the Devil Ray Class, the T24 is a 24-foot (7.2 m) system incorporating inboard/outboard powertrains (gas or diesel) that can achieve 60+ kt burst speeds and manage payloads up to 1,800 lbs (987 kg)
